| Device Name: | Interchangeability of drying tower for experimental spray dryer |
| Equipment type: | QFN-8000ST |
| Equipment specifications: | 1500ml/h (customized support) |
| Test machine: | Supporting Test Machine to Do Experiments |
| Scope of application: | Powdered and granular solid products are produced in solution, emulsion, suspension and paste liquid raw materials. |
| Applicable scenarios: | Scientific research, chemical industry, food, pesticide, medicine and biological industry in Universities |
| Is it guaranteed? | Three-year National Warranty |
| Contact number: | 17317246351 |
Experimental video exchange for drying tower of spray dryer
First,lab spray dryerIntroduction:
Miniature experimental micro spray dryer(spray dryer / spray dryer) and its main application in the laboratories of universities, research institutes and food pharmaceutical and chemical enterprises to produce micro particle powder, which is widely applicable to all solutions such as emulsions and suspensions, and is suitable for drying of heat sensitive substances, such as biological products, biological pesticides and enzyme preparations. High temperature, so it is only instantaneous heating, can maintain these active materials after drying their active ingredients are not destroyed.Two.lab spray dryerCharacteristic:
Three,lab spray dryerParameters:
| lab spray dryer |
qfn - 8000 st. |
|
|
Water evaporation |
1500ml |
|
|
Minimum feed rate |
80ml |
|
|
Drying chamber diameter (mm) |
Three hundred |
|
|
Atomization structure |
Atomization System (QFN-E-NZI1VER2018-1A) |
|
|
Electric control system |
QFN-CM-ES-VER2018-1A |
|
|
Maximum intake temperature |
~250 C (adjustable) |
|
|
Hot air condition |
Air supply/induced draft (optional) |
|
|
Heater capacity |
3kw |
|
|
Blower [power (kw), air volume (m/min)] |
[0.25，95] |
|
|
Compressor [Power (kw), Air Volume (L/min)] |
[0.58108] |
|
|
Electricity (kw) |
4kw |
|
|
Profile size (mm) |
800×600×1300 |
|
|
Brief description |

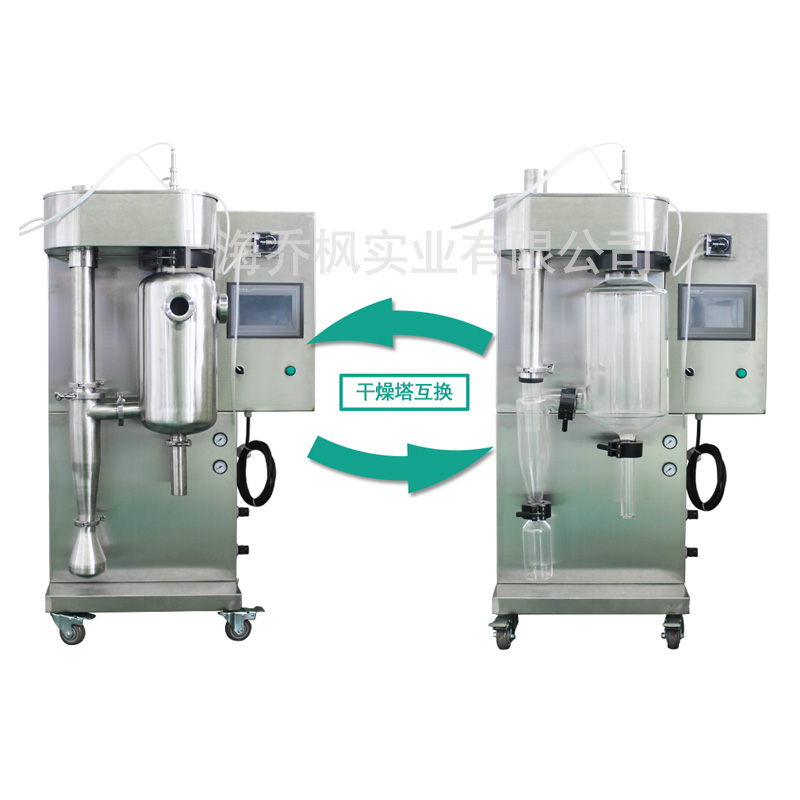

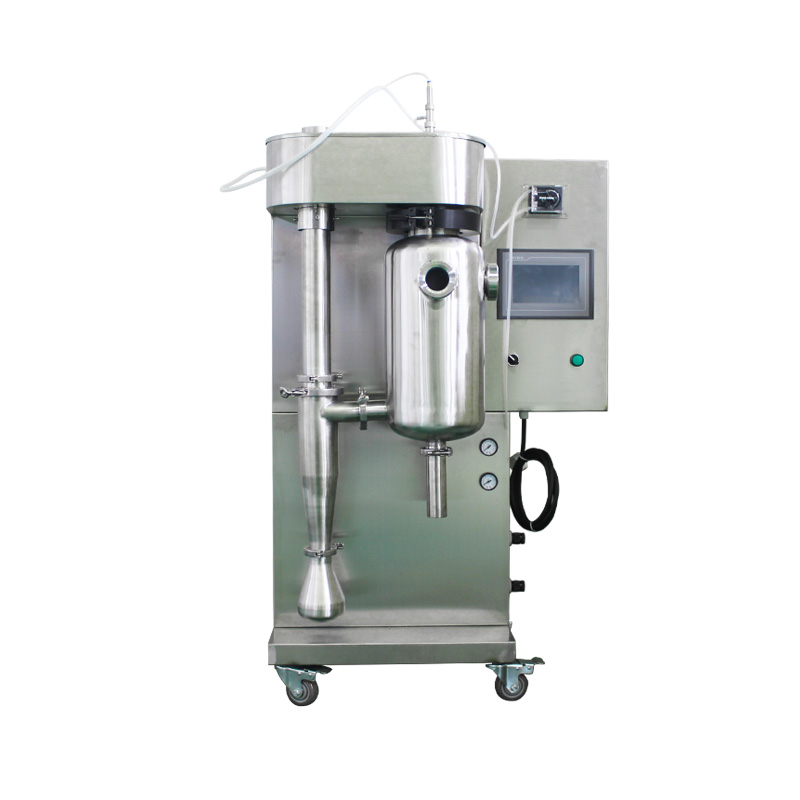

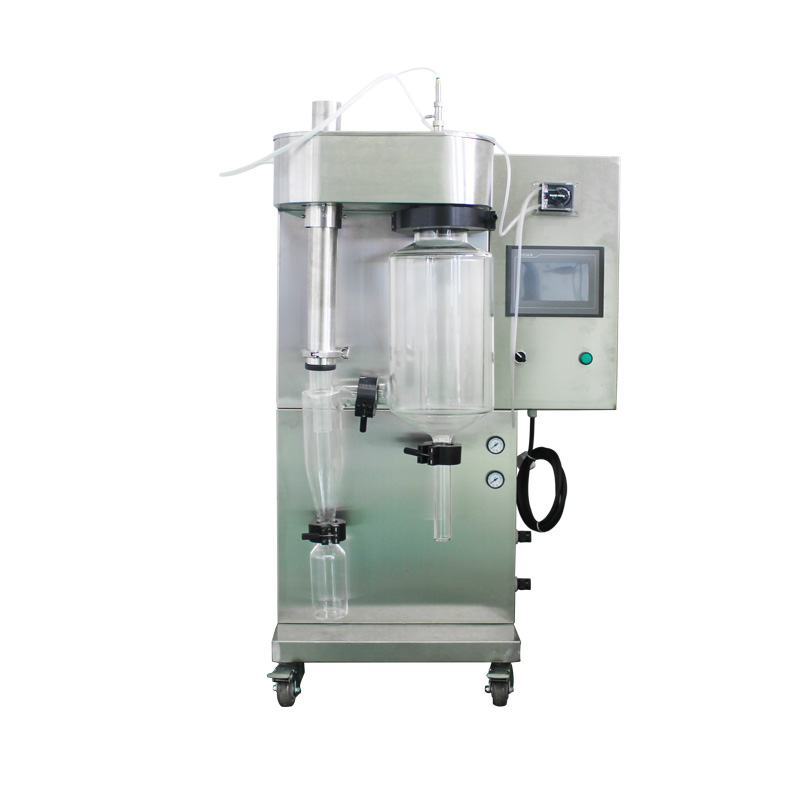

In addition, it is equipped with stainless steel atomization chamber, cyclone separator, material collection bottle and waste collection bottle, which can be used interchangeably with glass suit. The whole set of equipment can achieve the purpose of visual observation and permanent drying system. |
|
|
picture |
|
|
|
Installation Weight (Reference) |
125kg |
100kg |
|
Power Supply |
220V/-3(Relevant voltage can be customized according to different national standards) |
|
notes
1: Maximum moisture evaporation at 250 C.
2: If you need more evaporation equipment, please inquire online or call our company.
